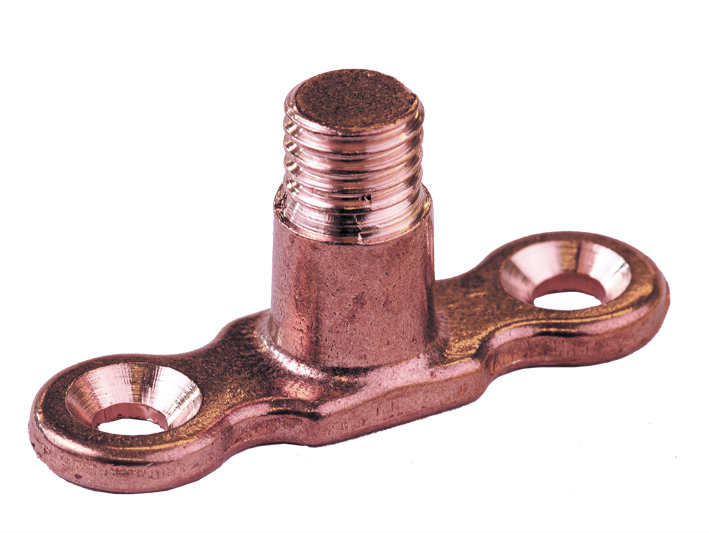

Male Backplate
Brass Munsen Rings
| Part | Description | Size 1 | Size 2 | Bag | Box |
|---|---|---|---|---|---|
| MUNBM010-1/4 | 10MM MALE BACKPLATE (1/4") BRASS | 10MM | 1/4" | 50 | 500 |
| MUNBM010-1/8 | 10MM MALE BACKPLATE (1/8") BRASS | 10MM | 1/8" | 100 | 1000 |
| MUNBM010-M10 | 10MM MALE BACKPLATE (M10) BRASS | 10MM | M10 | 100 | 1000 |
- Munsen rings are made of solid brass
- Ideal for direct contact with copper tube
- For hanging copper pipes from ceilings and/or walls
- M10 thread
- HTM02 compliant
- Suitable for internal and external use
- Comes in a chrome plated finish
General Description
HTM 02 compliant
Suitable for interior and external use
The pipeline should be adequately supported at sufficient intervals in accordance with the below table to prevent sagging or distortion. Supports for the surface-mounted pipework should provide clearance to permit painting of the surface. Where it is essential for pipes to cross electric cables or conduit, they should be support at intervals either side of the crossing to prevent them from touching the cable or conduit. Supports should be of suitable material or suitably treated to minimise corrosion and prevent electrolytic reaction between pipes and supports.
Material
Brass
Sizes
12mm – 159mm
Thread
M10
| Outside diameter (mm) | Maximum interval between supports (m) |
| Up to 15 | 1.5 |
| 22 – 28 | 2.0 |
| 35 -54 | 2.5 |
| > 54 | 3.0 |
Note: Consideration should be given to additional supports near LVAs, elbows etc where the potential effects of inadvertently applied torque can result in serve pipeline distortion or fracture
