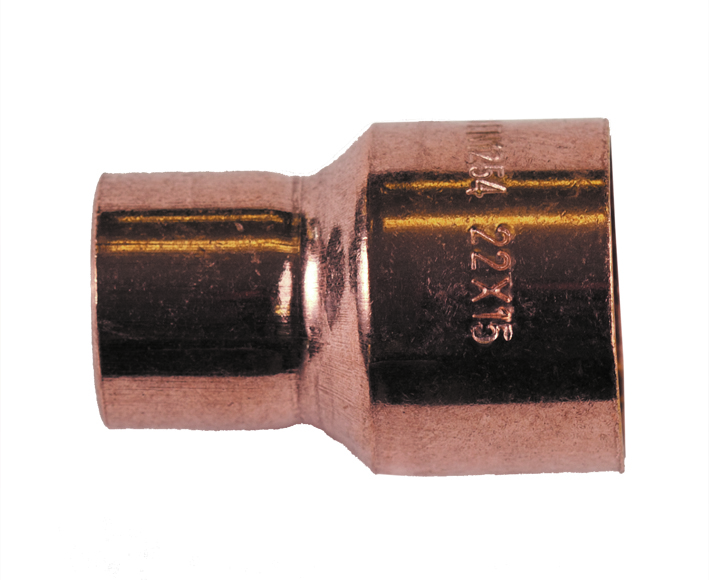

Copper Reducing Coupling (C x C)
Copper Pipe Fittings & Accessories
| Part | Description | Size 1 | Size 2 | Branch | Bag | Box |
|---|---|---|---|---|---|---|
| RFCP1.18X12 | 1.1/8" X 1/2" REDUCER COUPLER CXC | 1 1/8" | 1/2" | 1 1/8 | 25 | 500 |
| RFCP1.18X34 | 1.1/8" X 3/4" REDUCER COUPLER CXC | 1 1/8" | 3/4" | 1 1/8 | 25 | 400 |
| RFCP1.18X58 | 1.1/8" X 5/8" REDUCER COUPLER CXC | 1 1/8" | 5/8" | 1 1/8 | 25 | 500 |
| RFCP1.18X78 | 1.1/8" X 7/8" REDUCER COUPLER CXC | 1 1/8" | 7/8" | 1 1/8 | 20 | 400 |
| RFCP1.38 | 1.3/8" STRAIGHT COUPLER CXC | 1 3/8" | 1 3/8 | 10 | 200 | |
| RFCP1.38X1.18 | 1.3/8" X 1.1/8" REDUCER COUPLER CXC | 1 3/8" | 1 1/8" | 1 3/8 | 10 | 200 |
| RFCP1.38X34 | 1.3/8" X 3/4" REDUCER COUPLER CXC | 1 3/8" | 3/4" | 1 3/8 | 10 | 200 |
| RFCP1.38X58 | 1.3/8" X 5/8" REDUCER COUPLER CXC | 1 3/8" | 5/8" | 1 3/8 | 10 | 200 |
| RFCP1.38X78 | 1.3/8" X 7/8" REDUCER COUPLER CXC | 1 3/8" | 7/8" | 1 3/8 | 10 | 250 |
| RFCP1.58 | 1.5/8" STRAIGHT COUPLER CXC | 1 5/8" | 1 5/8 | 10 | 100 | |
| RFCP1.58X1.18 | 1.5/8" X 1.1/8" REDUCER COUPLER CXC | 1 5/8" | 1 1/8" | 1 5/8 | 10 | 160 |
| RFCP1.58X1.38 | 1.5/8" X 1.3/8" REDUCER COUPLER CXC | 1 5/8" | 1 3/8" | 1 5/8 | 10 | 120 |
| RFCP1.58X78 | 1.5/8" X 7/8" REDUCER COUPLER CXC | 1 5/8" | 7/8" | 1 5/8 | 10 | 200 |
| RFCP12 | 1/2" STRAIGHT COUPLER CXC | 1/2" | 1/2 | 100 | 3000 | |
| RFCP12X14 | 1/2" X 1/4" REDUCER COUPLER CXC | 1/2" | 1/4" | 1/2 | 100 | 2000 |
| RFCP12X38 | 1/2" X 3/8" REDUCER COUPLER CXC | 1/2" | 3/8" | 1/2 | 100 | 1500 |
| RFCP14 | 1/4" STRAIGHT COUPLER CXC | 1/4" | 1/4 | 100 | 5000 | |
| RFCP2.18 | 2.1/8" STRAIGHT COUPLER CXC | 2 1/8" | 2 1/8 | 5 | 60 | |
| RFCP2.18X1.18 | 2.1/8" X 1.1/8" REDUCER COUPLER CXC | 2 1/8" | 1 1/8" | 2 1/8 | 5 | 100 |
| RFCP2.18X1.38 | 2.1/8" X 1.3/8" REDUCER COUPLER CXC | 2 1/8" | 1 3/8" | 2 1/8 | 5 | 100 |
| RFCP2.18X1.58 | 2.1/8" X 1.5/8" REDUCER COUPLER CXC | 2 1/8" | 1 5/8" | 2 1/8 | 5 | 100 |
| RFCP2.18X58 | 2.1/8" X 5/8" REDUCER COUPLER CXC | 2 1/8" | 5/8" | 2 1/8 | 5 | 60 |
| RFCP2.18X78 | 2.1/8" X 7/8" REDUCER COUPLER CXC | 2 1/8" | 7/8" | 2 1/8 | 5 | 100 |
| RFCP2.58 | 2.5/8" STRAIGHT COUPLER CXC | 2 5/8" | 2 5/8 | 2 | 40 | |
| RFCP2.58X1.18 | 2.5/8" X 1.1/8" REDUCER COUPLER CXC | 2 5/8" | 1 1/8" | 2 5/8 | 5 | 50 |
| RFCP2.58X1.38 | 2.5/8" X 1.3/8" REDUCER COUPLER CXC | 2 5/8" | 1 3/8" | 2 5/8 | 5 | 50 |
| RFCP2.58X1.58 | 2.5/8" X 1.5/8" REDUCER COUPLER CXC | 2 5/8" | 1 5/8" | 2 5/8 | 5 | 50 |
| RFCP2.58X2.18 | 2.5/8" X 2.1/8" REDUCER COUPLER CXC | 2 5/8" | 2 1/8" | 2 5/8 | 5 | 50 |
| RFCP316 | 3/16" STRAIGHT COUPLER CXC | 3 1/6" | 3 1/6 | 100 | 5000 | |
| RFCP3.18X1.38 | 3.1/8" X 1.3/8" REDUCER COUPLER CXC | 3 1/8" | 1 3/8" | 3 1/8 | 1 | 25 |
| RFCP3.18X1.58 | 3.1/8" X 1.5/8" REDUCER COUPLER CXC | 3 1/8" | 1 5/8" | 3 1/8 | 1 | 25 |
| RFCP3.18X2.18 | 3.1/8" X 2.1/8" REDUCER COUPLER CXC | 3 1/8" | 2 1/8" | 3 1/8 | 1 | 25 |
| RFCP3.18X2.58 | 3.1/8" X 2.5/8" REDUCER COUPLER CXC | 3 1/8" | 2 5/8" | 3 1/8 | 1 | 25 |
| RFCP3.18 | 3.1/8" STRAIGHT COUPLER CXC | 3 1/8" | 3 1/8 | 2 | 32 | |
| RFCP3.58X2.58 | 3.5/8" X 2.5/8" REDUCER COUPLER CXC | 3 5/8" | 2 5/8" | 3 5/8 | 1 | 25 |
| RFCP3.58X3.18 | 3.5/8" X 3.1/8" REDUCER COUPLER CXC | 3 5/8" | 3 1/8" | 3 5/8 | 1 | 17 |
| RFCP3.58 | 3.5/8" STRAIGHT COUPLER CXC | 3 5/8" | 3 5/8 | 1 | 15 | |
| RFCP34 | 3/4" STRAIGHT COUPLER CXC | 3/4" | 3/4 | 50 | 900 | |
| RFCP34X12 | 3/4" X 1/2" REDUCER COUPLER CXC | 3/4" | 1/2" | 3/4 | 50 | 1100 |
| RFCP34X38 | 3/4" X 3/8" REDUCER COUPLER CXC | 3/4" | 3/8" | 3/4 | 50 | 1100 |
| RFCP34X58 | 3/4" X 5/8" REDUCER COUPLER CXC | 3/4" | 5/8" | 3/4 | 50 | 1000 |
| RFCP38 | 3/8" STRAIGHT COUPLER CXC | 3/8" | 3/8 | 100 | 5000 | |
| RFCP38X14 | 3/8" X 1/4" REDUCER COUPLER CXC | 3/8" | 1/4" | 3/8 | 100 | 2000 |
| RFCP4.18 | 4.1/8" STRAIGHT COUPLER CXC | 4 1/8" | 4 1/8 | 1 | 9 | |
| RFCP4.18X2.18 | 4.1/8" X 2.1/8" REDUCER COUPLER CXC | 4 1/8" | 2 1/8" | 4 1/8 | 1 | 18 |
| RFCP4.18X2.58 | 4.1/8" X 2.5/8" REDUCER COUPLER CXC | 4 1/8" | 2 5/8" | 4 1/8 | 1 | 18 |
| RFCP4.18X3.18 | 4.1/8" X 3.1/8" REDUCER COUPLER CXC | 4 1/8" | 3 1/8" | 4 1/8 | 1 | 18 |
| RFCP4.18X3.58 | 4.1/8" X 3.5/8" REDUCER COUPLER CXC | 4 1/8" | 3 5/8" | 4 1/8 | 1 | 12 |
| RFCP516 | 5/16" STRAIGHT COUPLER CXC | 5/16" | 5/16 | 100 | 5000 | |
| RFCP516X14 | 5/16" X 1/4" REDUCER COUPLER CXC | 5/16" | 1/4" | 5/16 | 100 | 5000 |
| RFCP58 | 5/8" STRAIGHT COUPLER CXC | 5/8" | 5/8 | 50 | 2000 | |
| RFCP58X12 | 5/8" X 1/2" REDUCER COUPLER CXC | 5/8" | 1/2" | 5/8 | 100 | 1500 |
| RFCP58X14 | 5/8" X 1/4" REDUCER COUPLER CXC | 5/8" | 1/4" | 5/8 | 100 | 1500 |
| RFCP58X38 | 5/8" X 3/8" REDUCER COUPLER CXC | 5/8" | 3/8" | 5/8 | 100 | 1500 |
| RFCP78 | 7/8" STRAIGHT COUPLER CXC | 7/8" | 7/8 | 50 | 500 | |
| RFCP78X12 | 7/8" X 1/2" REDUCER COUPLER CXC | 7/8" | 1/2" | 7/8 | 50 | 1000 |
| RFCP78X34 | 7/8" X 3/4" REDUCER COUPLER CXC | 7/8" | 3/4" | 7/8 | 50 | 800 |
| RFCP78X38 | 7/8" X 3/8" REDUCER COUPLER CXC | 7/8" | 3/8" | 7/8 | 50 | 1000 |
| RFCP78X58 | 7/8" X 5/8" REDUCER COUPLER CXC | 7/8" | 5/8" | 7/8 | 50 | 800 |
Our Copper Reducing couplings
- Manufactured in accordance with ASME B16.22, all of Lawton Tubes ACR fittings are seamless and one-piece, making them more durable and easier to use.
- We supply our ACR fittings in a wide variety of sizes, ranging from 3/16” to 4 1/8”.
- Furthermore, we also provide high-pressure fittings for CO2 applications, which are frequently required for large retail installations. For a swift delivery, we keep all fittings in stock.
- For added traceability, all Lawton Tube fittings are etched whenever it is practical. We supply a wide range of silver solder brazing alloys suited to various product types and applications.
Benefits of Our Couplings Include:
- We seal all our couplings in protected, product-labelled polythene bags.
- Fittings are supplied in reinforced cardboard boxes, labelled with product information and outline drawing of fitting.
- Each fitting is engraved with unique branding, space permitting
Copper Fittings for Co2
Degreased copper fittings specifically for ACR and manufactured to ASME B16.22-2001 which can be used in assemblies subject to the Pressure Equipment Directive.
The burst pressure of each fitting size at 55ºc has been determined and a safety factor of at least 3 has been applied to establish a recommended maximum working pressure.
All testing has been conducted in accordance with BS EN 378-2:2008 (+A1:2009).
Maximum Working Pressures
| Size | Burst Pressure | up to 55ºC | up to 100ºC | up to 150ºC |
| 1/4 “ | 500 bar | 150 bar | 150 bar | 131 bar |
| 3/8 ” | 360 bar | 120 bar | 120 bar | 105 bar |
| 1/2 “ | 320 bar | 100 bar | 100 bar | 87 bar |
| 5/8 “ | 300 bar | 100 bar | 100 bar | 87 bar |
| 3/4 “ | 280 bar | 90 bar | 90 bar | 79 bar |
| 7/8 “ | 240 bar | 80 bar | 80 bar | 70 bar |
| 1 1/8 “ | 220 bar | 75 bar | 75 bar | 66 bar |
| 1 3/8 “ | 220 bar | 65 bar | 65 bar | 57 bar |
| 1 5/8 “ | 180 bar | 55 bar | 55 bar | 48 bar |
| 2 1/8” | 100 bar | 33 bar | 33 bar | 29 bar |
| 2 5/8” | 93 bar | 31 bar | 31 bar | 27 bar |
| 3 1/8” | 87 bar | 29 bar | 29 bar | 25 bar |
| 3 5/8” | 84 bar | 28 bar | 28 bar | 24.5 bar |
| 4 1/8” | 81 bar | 27 bar | 27 bar | 23.5 bar |
Technical Data
Product Overview
Lawton Capillary Refrigeration Fittings are designed for use in air conditioning, refrigeration and CO₂ piping systems. Manufactured from high-purity copper and available in sizes from 1/4" to 4.1/8" (6.35mm – 104.775mm), the range provides a reliable solution for soldered and brazed refrigeration installations.
Applications
- Air Conditioning Systems
- Refrigeration Piping Systems
- CO₂ Refrigeration Systems
Market Sectors
- Domestic
- Commercial
Product Specifications
|
Property |
Specification |
|
Size Range |
1/4" – 4.1/8" (6.35mm – 104.775mm) |
|
Material |
CW024A Copper |
|
Jointing Method |
Soldering, Brazing |
|
Electrical Continuity |
Yes |
|
Product Marking |
Permanent Marking, Lawton Logo, Size |
|
Form of Supply |
Bags and Boxes |
|
Inner Surface Quality |
Clean and Smooth, Carbon Content ≤ 0.38 mg/dm² |
|
Thread Specification (Male) |
ASME B1.20.1 (NPTE) |
|
Thread Specification (Female) |
ASME B1.20.1 (NPTI) |
|
Standard |
ASME B16.22 |
|
PED Compliance |
Compliant Component in Pressure Equipment Directive Assemblies |
|
Warranty |
75 Years* |
*Subject to standard Terms & Conditions. Please refer to our website for full details.
Compatible Refrigerants
Suitable for use with:
- R32
- R134a
- R410A
- R404A
- R407C
- R407F
- R1234yf
- R1234ze
- R744 (CO₂)
- And other common refrigerants
Standards & Compliance
|
Category |
Standard |
|
Fittings Standard |
ASME B16.22 |
|
Male Thread Specification |
ASME B1.20.1 (NPTE) |
|
Female Thread Specification |
ASME B1.20.1 (NPTI) |
|
Pressure Equipment |
PED Compliant Component |
Material Composition & Properties
|
Property |
Value |
|
Copper Content Including Silver |
99.90% |
|
Phosphorus |
0.015 – 0.040% |
|
Total Impurities (Excluding Phosphorus and Silver) |
0.060% |
|
Melting Point |
1083°C |
|
Density |
8.96 g/cm³ |
Maximum Operating Pressure (BS EN 378-2)
|
Size |
Burst Pressure |
Up to 55°C |
Up to 100°C |
Up to 150°C |
|
1/4" |
500 bar |
150 bar |
150 bar |
131 bar |
|
3/8" |
360 bar |
120 bar |
120 bar |
105 bar |
|
1/2" |
320 bar |
100 bar |
100 bar |
87 bar |
|
5/8" |
300 bar |
100 bar |
100 bar |
87 bar |
|
3/4" |
280 bar |
90 bar |
90 bar |
79 bar |
|
7/8" |
240 bar |
80 bar |
80 bar |
70 bar |
|
1.1/8" |
220 bar |
75 bar |
75 bar |
66 bar |
|
1.3/8" |
220 bar |
65 bar |
65 bar |
57 bar |
|
1.5/8" |
180 bar |
55 bar |
55 bar |
48 bar |
|
2.1/8" |
100 bar |
33 bar |
33 bar |
29 bar |
|
2.5/8" |
93 bar |
31 bar |
31 bar |
27 bar |
|
3.1/8" |
87 bar |
29 bar |
29 bar |
25 bar |
|
3.5/8" |
84 bar |
28 bar |
28 bar |
24.5 bar |
|
4.1/8" |
81 bar |
27 bar |
27 bar |
23.5 bar |
