SADDLE BAND SINGLE
Saddle
| Part | Description | Size 1 | Bag | Box |
|---|---|---|---|---|
| EFSB015 | 15MM SADDLE BAND EF | 15MM | 10 | 1200 |
| EFSB022 | 22MM SADDLE BAND EF | 22MM | 10 | 600 |
| EFSB054 | 54MM SADDLE BAND EF | 28MM | 10 | 100 |

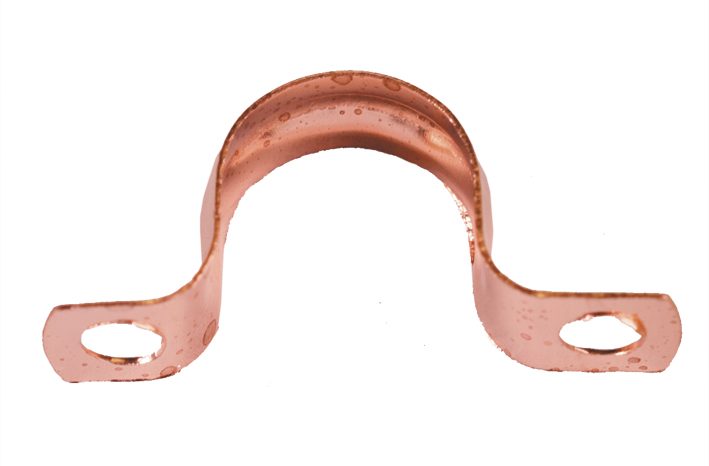

- Copper Saddle Bracket 100% Copper
- Ideal for direct contact with copper tube
- For hanging copper pipes from ceilings and/or walls
- HTM02 compliant
- Suitable for internal and external use
Technical Data
Product Overview
A comprehensive range of brass supports and fixings designed for the secure support and installation of copper tube systems. The range includes munsen rings, backplates, pipe brackets, saddle bands, pipe clamps, clips and copper tube straps suitable for plumbing, heating, HVAC/R, medical gas and engineering applications.
Applications
- Plumbing systems
- Heating installations
- HVAC/R pipework
- Medical gas systems
- Engineering pipework
Market Sectors
- Plumbing
- Heating
- HVAC/R
- Medical
- Engineering
Product Specifications
|
Property |
Specification |
|
Munsen Ring Size Range |
12mm – 159mm Tube OD |
|
Bracket Size Range |
15mm – 76.1mm Tube OD |
|
ACR Strap Size Range |
1/4" – 2.1/8" |
|
Materials |
Brass, Copper, Plastic and Rubber-lined Steel Components |
|
Finish Options |
Self-colour Brass or Chrome Plated |
|
Thread Options |
M10 Metric, 1/8", 1/4", 3/8" BSP |
|
Compatibility |
Suitable for copper tube installations |
|
Supply Format |
Individual fixings and support components |
Materials & Finishes
|
Component |
Material |
|
Munsen Rings |
Brass |
|
Backplates |
Brass |
|
Hospital Brackets |
Brass |
|
School Board Brackets |
Brass |
|
Saddle Bands |
Brass |
|
Tube Straps |
Copper |
|
Pipe Clamps |
Rubber-Lined |
|
Pipe Clips |
Plastic |
Available in:
- Self-colour brass
- Chrome plated brass
Compatibility Information
- Brass and copper fixings are suitable for use with bare copper tube.
- Galvanised fixings must not come into contact with uninsulated copper or stainless steel pipework in accordance with BS EN 806-4:2010.
Safety Information
Supports and fixings are load-bearing components and should be installed in accordance with:
- BS EN 806-4:2010
- Recommended support spacing guidelines
- Building structure and load requirements
Product Variants
|
Product Family |
Available Variants |
|
Munsen Rings |
Single, Double, Dual Tapped, Rapid Fix |
|
Backplates |
Male, Female |
|
Hospital Brackets |
Standard |
|
School Board Brackets |
Cast, Pressed |
|
Saddle Bands |
One Piece, Two Piece |
|
Clamps & Clips |
Rubber Lined Clamps, Plastic Clips, Copper Tube Straps |
Available Sizes
Munsen Rings
- 12mm – 159mm
Brackets
- 15mm – 76.1mm
Clamps & Clips
- Rubber-lined clamps: 12mm to 80mm clamping range
- Plastic pipe clips: 15mm and 22mm
- Copper tube straps: 1/4" to 2.1/8"
Recommended Support Spacing (BS EN 806-4:2010)
|
Copper Tube OD (mm) |
Horizontal Run (m) |
Vertical Run (m) |
|
10 |
1.0 |
1.5 |
|
12 |
1.2 |
1.8 |
|
15 |
1.2 |
1.8 |
|
22 |
1.8 |
2.4 |
|
28 |
1.8 |
2.4 |
|
35 |
2.4 |
3.0 |
|
42 |
2.4 |
3.0 |
|
54 |
2.7 |
3.6 |
|
66.7 |
3.0 |
3.6 |
|
76.1 |
3.0 |
3.6 |
|
108 |
3.0 |
3.6 |
|
133 |
3.6 |
4.2 |
