LOCKABLE LINE VALVE – MEDICAL
Medical Fittings
| Part | Description | Size 1 | Bag | Box |
|---|---|---|---|---|
| MEDLLV015 | 15MM LOCKABLE LINE VALVE MEDICAL | 15MM | 1 | 1 |
| MEDLLV022 | 22MM LOCKABLE LINE VALVE MEDICAL | 22MM | 1 | 1 |
| MEDLLV028 | 28MM LOCKABLE LINE VALVE MEDICAL | 28MM | 1 | 1 |
| MEDLLV035 | 35MM LOCKABLE LINE VALVE MEDICAL | 35MM | 1 | 1 |
| MEDLLV042 | 42MM LOCKABLE LINE VALVE MEDICAL | 42MM | 1 | 1 |
| MEDLLV054 | 54MM LOCKABLE LINE VALVE MEDICAL | 54MM | 1 | 1 |
| MEDLLV076 | 76.1MM LOCKABLE LINE VALVE MEDICAL | 76.1MM | 1 | 1 |
| MEDLLV108 | 108MM LOCKABLE LINE VALVE MEDICAL | 108MM | 1 | 1 |

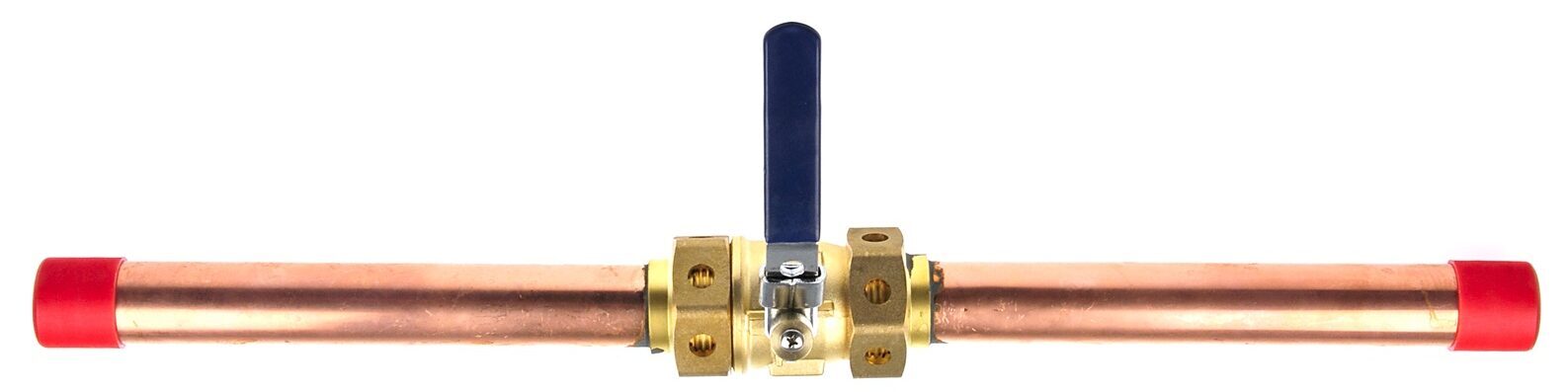

- Lockable Line Valves consist of a purpose designed male threaded brass ball valve fitted with copper pipe stubs
- The copper pipe stubs enable installation utilising fluxless brazing to WKO(82)1
- The flat face union between stub and valve incorporate o-ring seals ensuring gas tight connections
- The valve handle is lockable in the open or closed position to prevent unauthorised or inadvertent operation of the valve
- Rated for use up to 2500 kPa
- Available for standard pipe work sizes from ø15mm to ø54mm. Larger sizes are also available
- All components are bright acid dipped and vapour degreased prior to assembly
- Lockable Line Valves are 100% tested for leaks to atmosphere and isolation when in the closed position
Technical Data
Product Overview
Lawton Medical Gas Capillary Fittings are designed for use in medical gas pipeline systems, providing a reliable and compliant jointing solution for healthcare and specialist commercial installations. Manufactured from high-quality copper and brass materials, the range is available in sizes from 8mm to 219mm and complies with the requirements of HTM 02-01 and EN 1254-1.
Applications
- Medical Gas Pipeline Systems (MGPS)
- Healthcare Facilities
- Hospitals
- Laboratories
- Specialist Commercial Installations
Market Sectors
- Public Sector
- Commercial
Product Specifications
|
Property |
Specification |
|
Size Range |
8mm – 219mm |
|
Materials |
CW024A Copper, CW614N Brass |
|
Jointing Methods |
Soldering, Brazing |
|
Manufacturing Standard |
EN 1254-1 |
|
Performance Standards |
EN 1254-1, HTM 02-01 |
|
Electrical Continuity |
Yes |
|
Form of Supply |
Individual Bags and Boxes |
|
Product Marking |
Permanent Marking, Lawton Logo, Size |
|
Thread Specification (Male) |
ISO 7 / EN 10226-1 |
|
Thread Specification (Female) |
BS EN ISO 228 |
|
Inner Surface Quality |
Clean and Smooth, Carbon Content ≤ 1.0 mg/dm² |
|
Warranty |
75 Years* |
Subject to standard Terms & Conditions. Please refer to our website for full details.
Standards & Compliance
|
Category |
Standard |
|
Manufacturing Standard |
EN 1254-1 |
|
Performance Standard |
EN 1254-1 |
|
Medical Gas Compliance |
HTM 02-01 |
|
Brazing Alloy Standard |
EN ISO 17672 |
|
Soft Solder Standard |
EN ISO 9453 |
Material Composition
|
Property |
Value |
|
Copper Content (Including Silver) |
≥ 99.90% |
|
Phosphorus |
0.015 – 0.040% |
|
Total Impurities (Excluding Phosphorus and Silver) |
< 0.060% |
|
Melting Point |
1083°C |
|
Density |
8.96 g/cm³ |
Maximum Operating Pressure (Soft Soldered Joints)
Soft solder: tin/copper or tin/silver alloys to EN ISO 9453.
|
Nominal Size |
-40°C |
30°C |
65°C |
110°C |
|
8mm – 28mm |
25 bar |
25 bar |
25 bar |
16 bar |
|
35mm – 54mm |
25 bar |
25 bar |
16 bar |
10 bar |
|
66.7mm |
16 bar |
16 bar |
16 bar |
10 bar |
Important: Fittings above 66.7mm should not be assembled using soft solder due to insufficient mechanical strength.
Maximum Operating Pressure (Brazed / Hard Soldered Joints)
Hard solder (brazing alloy) in accordance with EN ISO 17672.
|
Nominal Size |
-40°C |
65°C |
120°C |
150°C |
200°C |
|
8mm |
62.5 bar |
62.5 bar |
58.8 bar |
46.7 bar |
23.3 bar |
|
10mm |
50.9 bar |
50.9 bar |
47.9 bar |
38.0 bar |
19.0 bar |
|
12mm |
42.9 bar |
42.9 bar |
40.3 bar |
32.0 bar |
16.0 bar |
|
15mm |
40.3 bar |
40.3 bar |
37.9 bar |
30.1 bar |
15.0 bar |
|
22mm |
35.6 bar |
35.6 bar |
33.5 bar |
26.6 bar |
13.3 bar |
|
28mm |
28.2 bar |
28.2 bar |
26.5 bar |
21.1 bar |
10.5 bar |
|
35mm |
25.2 bar |
25.2 bar |
23.7 bar |
18.8 bar |
9.4 bar |
|
42mm |
23.2 bar |
23.2 bar |
21.8 bar |
17.3 bar |
8.6 bar |
|
54mm |
19.8 bar |
19.8 bar |
18.6 bar |
14.7 bar |
7.4 bar |
|
66.7mm |
18.6 bar |
18.6 bar |
17.5 bar |
14.0 bar |
6.9 bar |
|
76.1mm |
18.6 bar |
18.6 bar |
17.5 bar |
14.0 bar |
6.9 bar |
|
108mm |
17.2 bar |
17.2 bar |
16.2 bar |
12.9 bar |
6.4 bar |
|
133mm |
10.5 bar |
10.5 bar |
8.5 bar |
7.7 bar |
4.1 bar |
|
159mm |
11.7 bar |
11.7 bar |
9.7 bar |
8.6 bar |
4.6 bar |
|
219mm |
12.8 bar |
12.8 bar |
10.4 bar |
9.4 bar |
5.0 bar |
Installation & Performance
|
Property |
Specification |
|
Jointing Method |
Soft Soldering or Brazing |
|
Electrical Continuity |
Yes |
|
Surface Quality |
Clean, smooth internal bore |
|
Maximum Carbon Content |
≤ 1.0 mg/dm² |
|
Product Identification |
Permanent Marking |
