Technical data
ParametersCapability
ApplicationsAir-conditioning and refrigeration
ConnectionsCopper to copper
Approved tube*: Copper tube conforming toEN 12735-1 or ASTM-B280
Fitting / tube range (inches)1/4″, 3/8″, 1/2″, 5/8″, 3/4″, 7/8″, 1″, 1 1/8″
Fitting materialRefrigerant grade copper (C12200 min 99.9% pure)
O-ringHNBR
Approved oilsPOE, PAO, PVE, AB and MO
Maximum operating and abnormal pressure48 bar / 4800 kPa / 700 psi
O-ring temperature range-40 °C to 140 °C / -40 °F to 284 °F
Burst pressure >3 x maximum operating and abnormal pressure EN 378-2>144 bar / >14400 kPa / >2100 psi
Leak tightnessHelium £ 7.5 × 10-7 Pa.m3/s at +20 °C, 10 bar
Vacuum200 microns
UL listing continuous operating temperature-40 °C to 121 °C / -40 °F to 250 °F
Compatible refrigerantsR-1234yf**, R-1234ze**, R-125, R-134a, R-290**, R-32**, R-404A, R-407A, R-407C, R-407F, R-407H, R-410A, R-417A, R-421A, R-422B, R-422D,
R-427A, R-438A, R-444A**, R-447A**, R-447B**, R-448A, R-449A, R-450A, R-452A, R-452B**,
R-452C, R-454A**, R-454B**, R-454C**,
R-457A**, R-459A**, R-507A, R-513A, R-513B, R-600A** and R-718.
* Please refer to >B< MaxiPro Technical Brochure – Tube Compatibility Table.
** When using refrigerants classified A2L (lower flammability), A2 (flammable) and A3 (higher flammability) ensure that all appropriate standards, local rules and regulations, codes of practice and by-laws are adhered to.
Back to Maxi Pro

Product Enquiry

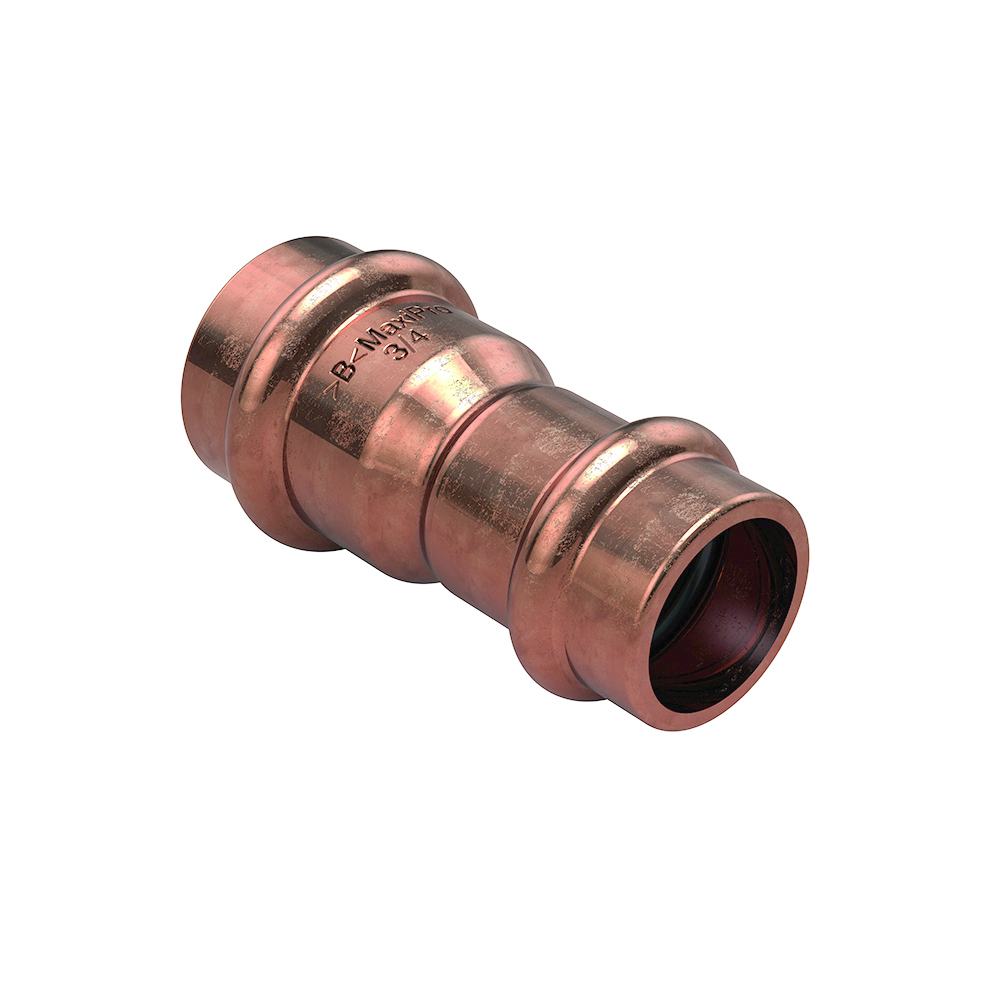

Reduced Coupler
