90 DEGREE STREET ELBOW PRESS
Press Fittings
| Part | Description | Size 1 | Bag | Box |
|---|---|---|---|---|
| PFELS015 | 15MM X 90 DEGREE STREET ELBOW PRESS | 15MM | 10 | 250 |
| PFELS022 | 22MM X 90 DEGREE STREET ELBOW PRESS | 22MM | 10 | 100 |
| PFELS028 | 28MM X 90 DEGREE STREET ELBOW PRESS | 28MM | 5 | 60 |
| PFELS035 | 35MM X 90 DEGREE STREET ELBOW PRESS | 35MM | 2 | 40 |
| PFELS042 | 42MM X 90 DEGREE STREET ELBOW PRESS | 42MM | 2 | 24 |
| PFELS054 | 54MM X 90 DEGREE STREET ELBOW PRESS | 54MM | 2 | 10 |
| PFELS067 | 66.7MM X 90 DEGREE STREET ELBOW PRESS | 66.7MM | 1 | 6 |
| PFELS076 | 76.1MM X 90 DEGREE STREET ELBOW PRESS | 76.1MM | 1 | 4 |
| PFELS108 | 108MM X 90 DEGREE STREET ELBOW PRESS | 108MM | 1 | 1 |

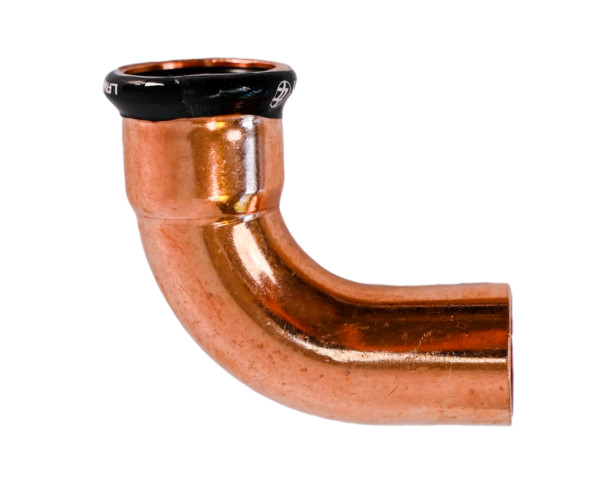

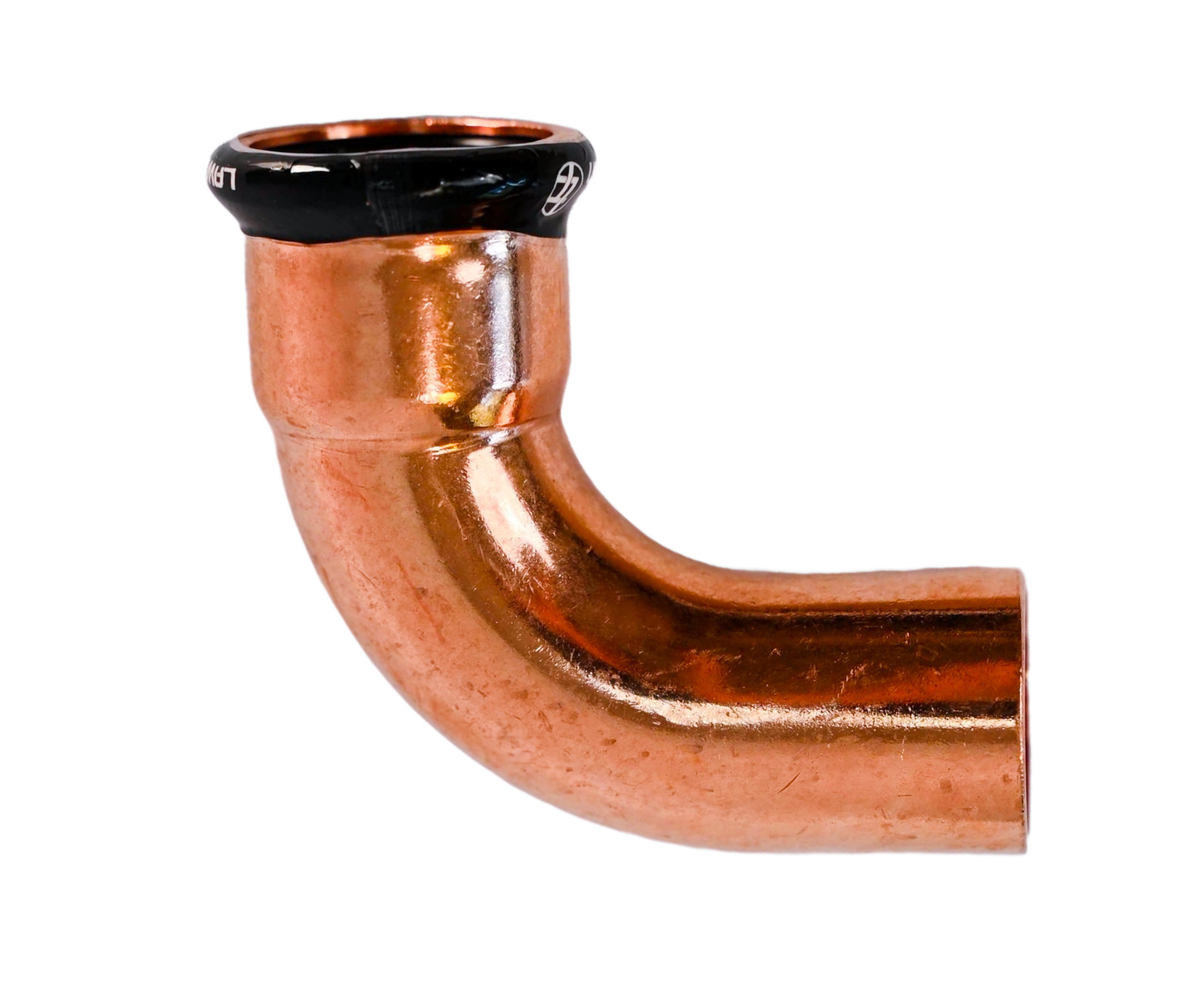

Press Fit Street Elbow 90°
The Lawton Tubes Press Fit Street Elbow 90° is designed to provide a compact 90-degree change in direction by connecting directly into another fitting. Its space-saving design makes it ideal for installations where room is limited while maintaining a secure and reliable connection.
The advanced press-fit design enables a fast, heat-free installation without the need for soldering, welding or hot works. This helps reduce installation time and allows installers to complete pipework systems more efficiently.
Designed for use with compatible press tools, the fitting features a leak-before-press O-ring and Lawton’s black visual press indicator to help ensure correct installation. Backed by Lawton’s industry-leading 75-year warranty, it provides dependable long-term performance.
Key Features
- Provides a compact 90-degree change in pipe direction
- Fast and efficient press-fit installation
- No soldering, welding or hot works required
- Secure, leak-tight connection
- Leak-before-press O-ring for installation security
- Lawton’s black visual press indicator for easy installation verification
- Manufactured to EN1254 standards
- KIWA Reg4 and WRAS approved
- Suitable for potable water, heating and cooling systems
- Available in sizes from 15mm to 108mm
- Backed by a 75-year warranty
Technical Data
Product Overview
Lawton Copper Press Fittings provide a fast, reliable and heat-free jointing solution for potable water, heating, cooling and oil-free compressed air systems. Available in sizes from 15mm to 108mm, the range features an M-profile press connection with EPDM sealing technology and is compliant with EN 1254-7.
Applications
- Potable Water Systems
- Heating Systems
- Cooling Systems
- Oil-Free Compressed Air Systems
Market Sectors
- Domestic
- Commercial
Product Specifications
|
Property |
Specification |
|
Size Range |
15mm – 108mm |
|
Approvals |
KIWA REG4, WRAS |
|
Materials |
CW024A Copper and CW602N DZR Brass |
|
Seal Material |
EPDM O-Ring |
|
Press Configuration |
M-Profile |
|
Maximum Liquid Pressure |
16 bar (-20°C to +110°C) |
|
Maximum Negative Pressure |
>0.2 bar (-20°C to +110°C) |
|
Maximum Oil-Free Compressed Air Pressure |
10 bar (5°C to 35°C) |
|
Product Marking |
Size, LTC Logo, EN 1254 |
|
Electrical Continuity |
Yes |
|
Thread Specification (Male) |
ISO 7 / EN 10226-1 |
|
Thread Specification (Female) |
BS EN ISO 228 |
|
Standard |
EN 1254-7 |
|
Warranty |
75 Years* |
Subject to standard Terms & Conditions. Please refer to our website for full details.
Standards & Compliance
|
Category |
Standard |
|
Press Fittings |
EN 1254-7 |
|
Male Threads |
ISO 7 / EN 10226-1 |
|
Female Threads |
BS EN ISO 228 |
|
Product Approval |
KIWA REG4 |
|
Product Approval |
WRAS |
Operating Performance
|
Property |
Value |
|
Maximum Liquid Pressure |
16 bar |
|
Maximum Oil-Free Compressed Air Pressure |
10 bar |
|
Maximum Negative Pressure |
>0.2 bar |
|
Operating Temperature Range |
-20°C to +110°C |
|
Electrical Continuity |
Yes |
Copper Tube Compatibility
Compatible with copper tube manufactured to BS EN 1057.
Material Conditions
- R250 – Half-hard, bendable
- R290 – Hard, unbendable
|
Outside Diameter |
0.7mm Wall |
0.9mm Wall |
1.0mm Wall |
1.2mm Wall |
1.5mm Wall |
2.0mm Wall |
2.5mm Wall |
|
15mm |
R250 |
— |
R250 / R290 |
— |
— |
— |
— |
|
22mm |
— |
R250 |
— |
R250 / R290 |
— |
— |
— |
|
28mm |
— |
R250 |
— |
R250 / R290 |
— |
— |
— |
|
35mm |
— |
— |
R290 |
R250 / R290 |
R290 |
— |
— |
|
42mm |
— |
— |
R290 |
R250 / R290 |
R290 |
— |
— |
|
54mm |
— |
— |
— |
— |
R290 |
R290 |
R290 |
|
66.7mm |
— |
— |
— |
— |
R290 |
R290 |
— |
|
76.1mm |
— |
— |
— |
— |
R290 |
R290 |
— |
|
108mm |
— |
— |
— |
— |
R290 |
— |
R290 |
Recommended Minimum Fitting Clearance
To allow for tube deformation during pressing, the following minimum distances should be maintained between adjacent fittings.
|
Tube Size |
Minimum Clearance F (mm) |
|
15mm |
13 |
|
22mm |
13 |
|
28mm |
13 |
|
35mm |
13 |
|
42mm |
16 |
|
54mm |
20 |
|
66.7mm |
30 |
|
76.1mm |
40 |
|
108mm |
50 |
Approved Press Tools
Lawton Copper Press Fittings are approved for use with M-profile press systems from:
- Novopress
- Geberit
- Rothenberger
- REMS
Important Installation Note
Matching press tools, adaptors, jaws and slings from the same manufacturer must always be used during installation.
Tool Compatibility
|
Manufacturer |
Model |
Diameter Range |
|
Novopress |
ACO103 |
15mm – 28mm |
|
Novopress |
ACO203 |
15mm – 54mm |
|
Novopress |
ACO203XL |
15mm – 76.1mm |
|
Novopress |
ACO403 |
108mm |
|
Geberit |
ACO103plus |
15mm – 35mm |
|
Geberit |
ACO203plus |
15mm – 66.7mm |
|
Geberit |
ACO203XLplus |
15mm – 108mm |
|
Rothenberger |
Compact TT |
15mm – 28mm |
|
Rothenberger |
Compact 3 |
15mm – 35mm |
|
Rothenberger |
Romax 4000 |
15mm – 54mm |
|
REMS |
Mini-Press |
15mm – 28mm |
|
REMS |
Akku-Press |
15mm – 28mm |
Note: For 108mm fittings, Novopress ZB221 and ZB222 adaptors act as the first and second stages respectively during the two-stage pressing process for the M108 collar.
Material Compatibility
Dissimilar Metals
Installations containing mixed metals should generally be avoided, as galvanic corrosion may occur when dissimilar metals are connected directly together.
Where mixed-metal systems are unavoidable:
- Follow the Water Regulations Guide.
- Apply recognised engineering best practice.
- Consider suitable isolation measures where required.
- Introducing the Lawton Press range, available in sizes from 15-54mm.
- Perfect for potable water, heating, and cooling applications.
- This innovative product comes with an unbeatable 30-year warranty, showcasing our commitment to quality and reliability.
- Certified Excellence: KIWA, REG4 and WRAS Approval
- Advanced Features: M Profile
- Leak Before Press: O-ring Technology for Added Security
