COUPLER END-FEED
End-feed Fittings
| Part | Description | Size 1 |
|---|---|---|
| EFCP008 | 8MM COUPLER EF | 8MM |
| EFCP010 | 10MM COUPLER EF | 10MM |
| EFCP015 | 15MM COUPLER EF | 15MM |
| EFCP022 | 22MM COUPLER EF | 22MM |
| EFCP028 | 28MM COUPLER EF | 28MM |
| EFCP035 | 35MM COUPLER EF | 35MM |
| EFCP042 | 42MM COUPLER EF | 42MM |
| EFCP054 | 54MM COUPLER EF | 54MM |
| EFCP067 | 66.7MM COUPLER EF | 66.7MM |
| EFCP076 | 76.1MM COUPLER EF | 76.1MM |
| EFCP108 | 108MM COUPLER EF | 108MM |
| EFCP133 | 133MM COUPLER EF | 133MM |
| EFCP159 | 159MM COUPLER EF | 159MM |
| EFCP219 | 219MM COUPLER EF | 219MM |

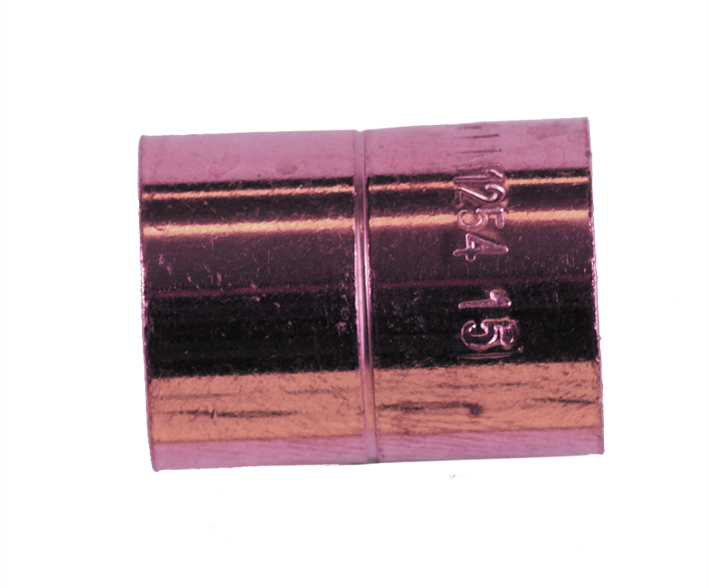

End Feed Coupler
The Lawton End Feed Coupler is designed to provide a secure connection between two lengths of copper pipework. Manufactured as a seamless, one-piece fitting, it offers excellent strength, durability and ease of installation for plumbing and heating systems.
The end-feed design provides a traditional soldered connection method, creating a strong and reliable joint. Manufactured to EN 1254-1 standards and suitable for BS EN 1057 copper tube, it delivers dependable performance across professional installations.
Available from 8mm to 219mm, Lawton End Feed Couplers are suitable for everything from domestic installations to large commercial projects. Backed by Lawton’s 75-Year Warranty, they provide long-term reliability and confidence.
Key Features
-
- Joins two lengths of copper pipe securely
- Manufactured as a seamless, one-piece fitting
- Manufactured to EN 1254-1
- Suitable for BS EN 1057 copper tube
- Available in sizes from 8mm to 219mm
- Traditional soldered joint installation
- Strong and durable construction
- Suitable for plumbing, heating and mechanical systems
- Ideal for large-scale projects
- Backed by a 75-Year Warranty
Technical Data
Product Overview
Lawton Plumbing Capillary Fittings provide a reliable and proven jointing solution for potable water, heating and cooling systems. Manufactured from high-quality copper and brass materials, the range is available in sizes from 8mm to 219mm and complies with EN 1254-1 for capillary fittings.
Applications
- Potable Water Systems
- Heating Systems
- Cooling Systems
Market Sectors
- Domestic
- Commercial
Product Specifications
|
Property |
Specification |
|
Size Range |
8mm – 219mm |
|
Materials |
CW024A Copper, CW614N Brass |
|
Jointing Methods |
Soldering, Brazing |
|
Standard |
EN 1254-1 |
|
Electrical Continuity |
Yes |
|
Form of Supply |
Bags and Boxes |
|
Product Marking |
Permanent Marking, Lawton Logo, Size |
|
Thread Specification (Male) |
ISO 7 / EN 10226-1 |
|
Thread Specification (Female) |
BS EN ISO 228 |
|
Inner Surface Quality |
Clean and Smooth, Carbon Content ≤ 1.0 mg/dm² |
|
Warranty |
75 Years* |
Subject to standard Terms & Conditions. Please refer to our website for full details.
Standards & Compliance
|
Category |
Standard |
|
Manufacturing Standard |
EN 1254-1 |
|
Soft Solder Standard |
EN ISO 9453 |
|
Brazing Alloy Standard |
EN ISO 17672 |
Material Composition
|
Property |
Value |
|
Copper Content (Including Silver) |
≥ 99.90% |
|
Phosphorus |
0.015 – 0.040% |
|
Total Impurities (Excluding Phosphorus and Silver) |
< 0.060% |
|
Melting Point |
1083°C |
|
Density |
8.96 g/cm³ |
Maximum Operating Pressure (Soft Soldered Joints)
Soft solder: tin/copper or tin/silver alloys to EN ISO 9453.
|
Nominal Size |
-40°C |
30°C |
65°C |
110°C |
|
8mm – 28mm |
25 bar |
25 bar |
25 bar |
16 bar |
|
35mm – 54mm |
25 bar |
25 bar |
16 bar |
10 bar |
|
66.7mm |
16 bar |
16 bar |
16 bar |
10 bar |
Important: Fittings larger than 66.7mm should not be assembled using soft solder due to insufficient mechanical strength.
Maximum Operating Pressure (Brazed / Hard Soldered Joints)
Hard solder (brazing alloy) in accordance with EN ISO 17672.
|
Nominal Size |
-40°C |
65°C |
120°C |
150°C |
200°C |
|
8mm |
62.5 bar |
62.5 bar |
58.8 bar |
46.7 bar |
23.3 bar |
|
10mm |
50.9 bar |
50.9 bar |
47.9 bar |
38.0 bar |
19.0 bar |
|
12mm |
42.9 bar |
42.9 bar |
40.3 bar |
32.0 bar |
16.0 bar |
|
15mm |
40.3 bar |
40.3 bar |
37.9 bar |
30.1 bar |
15.0 bar |
|
22mm |
35.6 bar |
35.6 bar |
33.5 bar |
26.6 bar |
13.3 bar |
|
28mm |
28.2 bar |
28.2 bar |
26.5 bar |
21.1 bar |
10.5 bar |
|
35mm |
25.2 bar |
25.2 bar |
23.7 bar |
18.8 bar |
9.4 bar |
|
42mm |
23.2 bar |
23.2 bar |
21.8 bar |
17.3 bar |
8.6 bar |
|
54mm |
19.8 bar |
19.8 bar |
18.6 bar |
14.7 bar |
7.4 bar |
|
66.7mm |
18.6 bar |
18.6 bar |
17.5 bar |
14.0 bar |
6.9 bar |
|
76.1mm |
18.6 bar |
18.6 bar |
17.5 bar |
14.0 bar |
6.9 bar |
|
108mm |
17.2 bar |
17.2 bar |
16.2 bar |
12.9 bar |
6.4 bar |
|
133mm |
10.5 bar |
10.5 bar |
8.5 bar |
7.7 bar |
4.1 bar |
|
159mm |
11.7 bar |
11.7 bar |
9.7 bar |
8.6 bar |
4.6 bar |
|
219mm |
12.8 bar |
12.8 bar |
10.4 bar |
9.4 bar |
5.0 bar |
Installation & Performance
|
Property |
Specification |
|
Jointing Method |
Soft Soldering or Brazing |
|
Electrical Continuity |
Yes |
|
Product Traceability |
Permanent Marking |
|
Internal Cleanliness |
Clean and Smooth Bore |
|
Maximum Carbon Content |
≤ 1.0 mg/dm² |
Instructions for use: Fittings 54mm and below, use tin solder.
How to Solder Copper Fittings Instructions
Instructions for use: Fittings 67mm and above, use brazing rod.
