EQUAL TEE END-FEED
End-feed Fittings
| Part | Description | Size 1 |
|---|---|---|
| EFTE008 | 8MM EQUAL TEE EF | 8MM |
| EFTE010 | 10MM EQUAL TEE EF | 10MM |
| EFTE015 | 15MM EQUAL TEE EF | 15MM |
| EFTE022 | 22MM EQUAL TEE EF | 22MM |
| EFTE028 | 28MM EQUAL TEE EF | 28MM |
| EFTE035 | 35MM EQUAL TEE EF | 35MM |
| EFTE042 | 42MM EQUAL TEE EF | 42MM |
| EFTE054 | 54MM EQUAL TEE EF | 54MM |
| EFTE067 | 66.7MM EQUAL TEE EF | 66.7MM |
| EFTE076 | 76.1MM EQUAL TEE EF | 76.1MM |
| EFTE108 | 108MM EQUAL TEE EF | 108MM |
| EFTE133 | 133MM EQUAL TEE EF | 133MM |
| EFTE159 | 159MM EQUAL TEE EF | 159MM |
| EFTE219 | 219MM EQUAL TEE EF | 219MM |

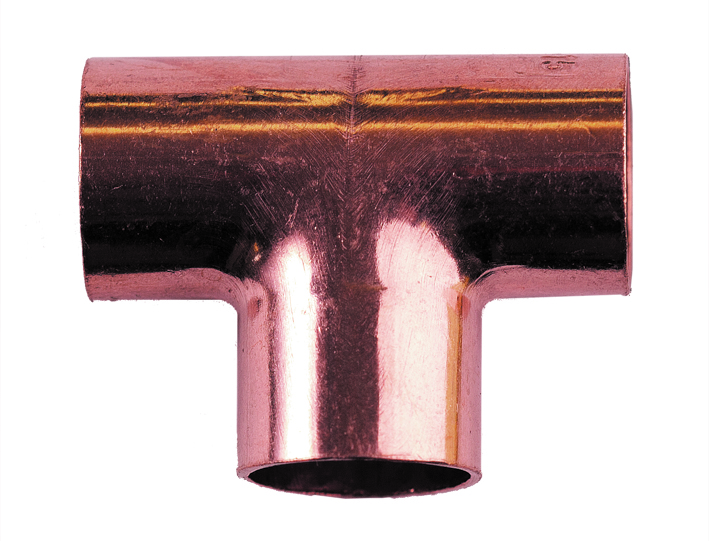

End Feed Tee
The Lawton End Feed Tee is designed to create a secure three-way branch connection within copper plumbing and heating systems. Manufactured as a seamless, one-piece fitting, it provides exceptional strength, durability and dependable long-term performance.
The end-feed design provides a traditional soldered connection method, creating a reliable and long-lasting joint. Manufactured to EN 1254-1 standards and suitable for BS EN 1057 copper tube, it offers trusted performance across professional installations.
Available from 8mm to 219mm, the Lawton End Feed Tee is suitable for domestic, commercial and industrial projects. Backed by Lawton’s 75-Year Warranty, it delivers confidence and reliability.
Key Features
-
- Creates a three-way branch connection
- Manufactured as a seamless, one-piece fitting
- Manufactured to EN 1254-1
- Suitable for BS EN 1057 copper tube
- Available in sizes from 8mm to 219mm
- Traditional soldered joint installation
- Strong and durable construction
- Suitable for plumbing, heating and mechanical applications
- Ideal for domestic, commercial and industrial projects
- Backed by a 75-Year Warranty
Technical Data
Product Overview
Lawton Plumbing Capillary Fittings provide a reliable and proven jointing solution for potable water, heating and cooling systems. Manufactured from high-quality copper and brass materials, the range is available in sizes from 8mm to 219mm and complies with EN 1254-1 for capillary fittings.
Applications
- Potable Water Systems
- Heating Systems
- Cooling Systems
Market Sectors
- Domestic
- Commercial
Product Specifications
|
Property |
Specification |
|
Size Range |
8mm – 219mm |
|
Materials |
CW024A Copper, CW614N Brass |
|
Jointing Methods |
Soldering, Brazing |
|
Standard |
EN 1254-1 |
|
Electrical Continuity |
Yes |
|
Form of Supply |
Bags and Boxes |
|
Product Marking |
Permanent Marking, Lawton Logo, Size |
|
Thread Specification (Male) |
ISO 7 / EN 10226-1 |
|
Thread Specification (Female) |
BS EN ISO 228 |
|
Inner Surface Quality |
Clean and Smooth, Carbon Content ≤ 1.0 mg/dm² |
|
Warranty |
75 Years* |
Subject to standard Terms & Conditions. Please refer to our website for full details.
Standards & Compliance
|
Category |
Standard |
|
Manufacturing Standard |
EN 1254-1 |
|
Soft Solder Standard |
EN ISO 9453 |
|
Brazing Alloy Standard |
EN ISO 17672 |
Material Composition
|
Property |
Value |
|
Copper Content (Including Silver) |
≥ 99.90% |
|
Phosphorus |
0.015 – 0.040% |
|
Total Impurities (Excluding Phosphorus and Silver) |
< 0.060% |
|
Melting Point |
1083°C |
|
Density |
8.96 g/cm³ |
Maximum Operating Pressure (Soft Soldered Joints)
Soft solder: tin/copper or tin/silver alloys to EN ISO 9453.
|
Nominal Size |
-40°C |
30°C |
65°C |
110°C |
|
8mm – 28mm |
25 bar |
25 bar |
25 bar |
16 bar |
|
35mm – 54mm |
25 bar |
25 bar |
16 bar |
10 bar |
|
66.7mm |
16 bar |
16 bar |
16 bar |
10 bar |
Important: Fittings larger than 66.7mm should not be assembled using soft solder due to insufficient mechanical strength.
Maximum Operating Pressure (Brazed / Hard Soldered Joints)
Hard solder (brazing alloy) in accordance with EN ISO 17672.
|
Nominal Size |
-40°C |
65°C |
120°C |
150°C |
200°C |
|
8mm |
62.5 bar |
62.5 bar |
58.8 bar |
46.7 bar |
23.3 bar |
|
10mm |
50.9 bar |
50.9 bar |
47.9 bar |
38.0 bar |
19.0 bar |
|
12mm |
42.9 bar |
42.9 bar |
40.3 bar |
32.0 bar |
16.0 bar |
|
15mm |
40.3 bar |
40.3 bar |
37.9 bar |
30.1 bar |
15.0 bar |
|
22mm |
35.6 bar |
35.6 bar |
33.5 bar |
26.6 bar |
13.3 bar |
|
28mm |
28.2 bar |
28.2 bar |
26.5 bar |
21.1 bar |
10.5 bar |
|
35mm |
25.2 bar |
25.2 bar |
23.7 bar |
18.8 bar |
9.4 bar |
|
42mm |
23.2 bar |
23.2 bar |
21.8 bar |
17.3 bar |
8.6 bar |
|
54mm |
19.8 bar |
19.8 bar |
18.6 bar |
14.7 bar |
7.4 bar |
|
66.7mm |
18.6 bar |
18.6 bar |
17.5 bar |
14.0 bar |
6.9 bar |
|
76.1mm |
18.6 bar |
18.6 bar |
17.5 bar |
14.0 bar |
6.9 bar |
|
108mm |
17.2 bar |
17.2 bar |
16.2 bar |
12.9 bar |
6.4 bar |
|
133mm |
10.5 bar |
10.5 bar |
8.5 bar |
7.7 bar |
4.1 bar |
|
159mm |
11.7 bar |
11.7 bar |
9.7 bar |
8.6 bar |
4.6 bar |
|
219mm |
12.8 bar |
12.8 bar |
10.4 bar |
9.4 bar |
5.0 bar |
Installation & Performance
|
Property |
Specification |
|
Jointing Method |
Soft Soldering or Brazing |
|
Electrical Continuity |
Yes |
|
Product Traceability |
Permanent Marking |
|
Internal Cleanliness |
Clean and Smooth Bore |
|
Maximum Carbon Content |
≤ 1.0 mg/dm² |
Instructions for use: Fittings 54mm and below, use tin solder.
How to Solder Copper Fittings Instructions
Instructions for use: Fittings 67mm and above, use brazing rod.
