FEMALE TEE PRESS
Press Fittings
| Part | Description | Size 1 | Size 2 | Branch | Bag | Box |
|---|---|---|---|---|---|---|
| PFTEF015151/2 | 15MM X 15MM X 1/2" FEMALE TEE BRASS | 15MM | 15MM | 1/2" | 10 | 100 |
| PFTEF022221/2 | 22MM X 22MM X 1/2" FEMALE TEE BRASS | 22MM | 22MM | 1/2" | 10 | 80 |
| PFTEF022223/4 | 22MM X 22MM X 3/4" FEMALE TEE BRASS | 22MM | 22MM | 3/4" | 10 | 100 |
| PFTEF028281 | 28MM X 28MM X 1" FEMALE TEE BRASS | 28MM | 28MM | 1" | 10 | 50 |
| PFTEF028281/2 | 28MM X 28MM X 1/2" FEMALE TEE BRASS | 28MM | 28MM | 1/2" | 10 | 60 |
| PFTEF028283/4 | 28MM X 28MM X 3/4" FEMALE TEE BRASS | 28MM | 28MM | 3/4" | 60 | 10 |
| PFTEF035351/2 | 35MM X 1/2 FEMALE TEE BRASS PRESS | 35MM | 35MM | 1/2" | 5 | 20 |
| PFTEF042421/2 | 42MM X 1/2 FEMALE TEE BRASS PRESS | 42MM | 42MM | 1/2" | 2 | 30 |
| PFTEF054541/2 | 54MM X 1/2 FEMALE TEE BRASS PRESS | 54MM | 54MM | 1/2" | 2 | 16 |
| PFTEF067671/2 | 66.7MM X 66.7MM X 1/2" FEMALE TEE BRASS | 66.7MM | 66.7MM | 1/2" | 1 | 10 |
| PFTEF076761/2 | 76.1MM X 1/2 FEMALE TEE BRASS PRESS | 76.1MM | 76.1MM | 1/2" | 1 | 8 |
| PFTEF076763/4 | 76.1MM X 3/4 FEMALE TEE BRASS PRESS | 76.1MM | 76.1MM | 3/4" | 1 | 8 |
Press Fit Female Tee

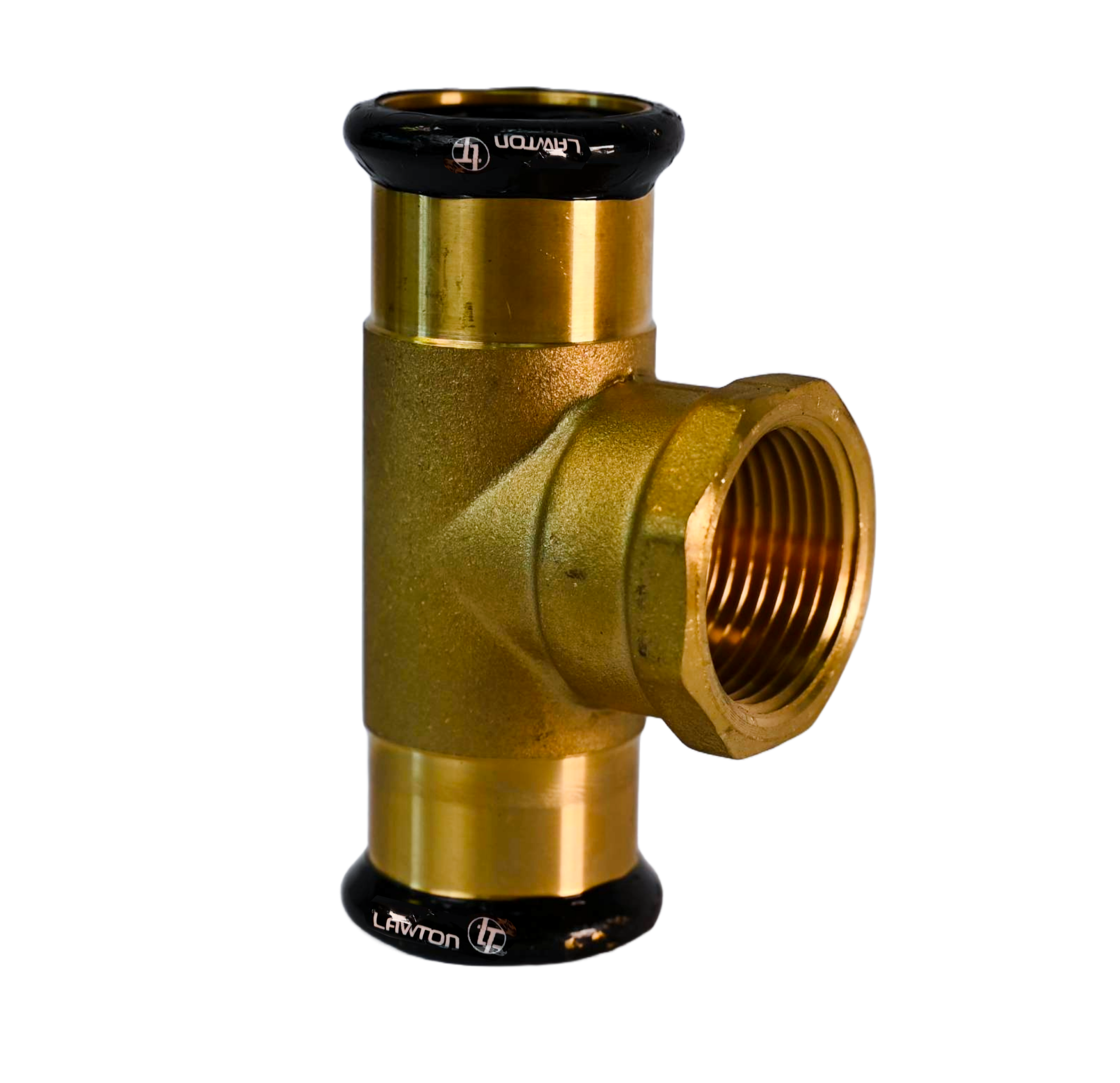

The Lawton Tubes Press Fit Female Tee is designed to create a three-way branch connection with a female threaded outlet within press-fit pipework systems. Manufactured for dependable performance, it offers a reliable solution for integrating threaded components into plumbing systems.
The advanced press-fit design enables a fast, heat-free installation without the need for soldering, welding or hot works. This reduces installation time while providing a secure and leak-tight connection.
Designed for use with compatible press tools, the fitting features a leak-before-press O-ring and Lawton’s black visual press indicator to help ensure correct installation. Backed by Lawton’s industry-leading 75-year warranty, it provides lasting reliability and peace of mind.
Key Features
- Creates a three-way branch with a female threaded outlet
- Fast and efficient press-fit installation
- No soldering, welding or hot works required
- Secure, leak-tight connection
- Leak-before-press O-ring for installation security
- Lawton’s black visual press indicator for easy installation verification
- Manufactured to EN1254 standards
- KIWA Reg4 and WRAS approved
- Suitable for potable water, heating and cooling systems
- Available in sizes from 15mm to 76mm
- Backed by a 75-year warranty
Technical Data
Product Overview
Lawton Copper Press Fittings provide a fast, reliable and heat-free jointing solution for potable water, heating, cooling and oil-free compressed air systems. Available in sizes from 15mm to 108mm, the range features an M-profile press connection with EPDM sealing technology and is compliant with EN 1254-7.
Applications
- Potable Water Systems
- Heating Systems
- Cooling Systems
- Oil-Free Compressed Air Systems
Market Sectors
- Domestic
- Commercial
Product Specifications
|
Property |
Specification |
|
Size Range |
15mm – 108mm |
|
Approvals |
KIWA REG4, WRAS |
|
Materials |
CW024A Copper and CW602N DZR Brass |
|
Seal Material |
EPDM O-Ring |
|
Press Configuration |
M-Profile |
|
Maximum Liquid Pressure |
16 bar (-20°C to +110°C) |
|
Maximum Negative Pressure |
>0.2 bar (-20°C to +110°C) |
|
Maximum Oil-Free Compressed Air Pressure |
10 bar (5°C to 35°C) |
|
Product Marking |
Size, LTC Logo, EN 1254 |
|
Electrical Continuity |
Yes |
|
Thread Specification (Male) |
ISO 7 / EN 10226-1 |
|
Thread Specification (Female) |
BS EN ISO 228 |
|
Standard |
EN 1254-7 |
|
Warranty |
75 Years* |
Subject to standard Terms & Conditions. Please refer to our website for full details.
Standards & Compliance
|
Category |
Standard |
|
Press Fittings |
EN 1254-7 |
|
Male Threads |
ISO 7 / EN 10226-1 |
|
Female Threads |
BS EN ISO 228 |
|
Product Approval |
KIWA REG4 |
|
Product Approval |
WRAS |
Operating Performance
|
Property |
Value |
|
Maximum Liquid Pressure |
16 bar |
|
Maximum Oil-Free Compressed Air Pressure |
10 bar |
|
Maximum Negative Pressure |
>0.2 bar |
|
Operating Temperature Range |
-20°C to +110°C |
|
Electrical Continuity |
Yes |
Copper Tube Compatibility
Compatible with copper tube manufactured to BS EN 1057.
Material Conditions
- R250 – Half-hard, bendable
- R290 – Hard, unbendable
|
Outside Diameter |
0.7mm Wall |
0.9mm Wall |
1.0mm Wall |
1.2mm Wall |
1.5mm Wall |
2.0mm Wall |
2.5mm Wall |
|
15mm |
R250 |
— |
R250 / R290 |
— |
— |
— |
— |
|
22mm |
— |
R250 |
— |
R250 / R290 |
— |
— |
— |
|
28mm |
— |
R250 |
— |
R250 / R290 |
— |
— |
— |
|
35mm |
— |
— |
R290 |
R250 / R290 |
R290 |
— |
— |
|
42mm |
— |
— |
R290 |
R250 / R290 |
R290 |
— |
— |
|
54mm |
— |
— |
— |
— |
R290 |
R290 |
R290 |
|
66.7mm |
— |
— |
— |
— |
R290 |
R290 |
— |
|
76.1mm |
— |
— |
— |
— |
R290 |
R290 |
— |
|
108mm |
— |
— |
— |
— |
R290 |
— |
R290 |
Recommended Minimum Fitting Clearance
To allow for tube deformation during pressing, the following minimum distances should be maintained between adjacent fittings.
|
Tube Size |
Minimum Clearance F (mm) |
|
15mm |
13 |
|
22mm |
13 |
|
28mm |
13 |
|
35mm |
13 |
|
42mm |
16 |
|
54mm |
20 |
|
66.7mm |
30 |
|
76.1mm |
40 |
|
108mm |
50 |
Approved Press Tools
Lawton Copper Press Fittings are approved for use with M-profile press systems from:
- Novopress
- Geberit
- Rothenberger
- REMS
Important Installation Note
Matching press tools, adaptors, jaws and slings from the same manufacturer must always be used during installation.
Tool Compatibility
|
Manufacturer |
Model |
Diameter Range |
|
Novopress |
ACO103 |
15mm – 28mm |
|
Novopress |
ACO203 |
15mm – 54mm |
|
Novopress |
ACO203XL |
15mm – 76.1mm |
|
Novopress |
ACO403 |
108mm |
|
Geberit |
ACO103plus |
15mm – 35mm |
|
Geberit |
ACO203plus |
15mm – 66.7mm |
|
Geberit |
ACO203XLplus |
15mm – 108mm |
|
Rothenberger |
Compact TT |
15mm – 28mm |
|
Rothenberger |
Compact 3 |
15mm – 35mm |
|
Rothenberger |
Romax 4000 |
15mm – 54mm |
|
REMS |
Mini-Press |
15mm – 28mm |
|
REMS |
Akku-Press |
15mm – 28mm |
Note: For 108mm fittings, Novopress ZB221 and ZB222 adaptors act as the first and second stages respectively during the two-stage pressing process for the M108 collar.
Material Compatibility
Dissimilar Metals
Installations containing mixed metals should generally be avoided, as galvanic corrosion may occur when dissimilar metals are connected directly together.
Where mixed-metal systems are unavoidable:
- Follow the Water Regulations Guide.
- Apply recognised engineering best practice.
- Consider suitable isolation measures where required.
