90 DEGREE ELBOW CHROME COMPRESSION
Copper Compression Fittings
| Part | Description | Size 1 | Bag | Box |
|---|---|---|---|---|
| COMEL015CP | 15MM X 90 DEGREE ELBOW CHROME COMPRESSION | 15MM | 10 | 200 |
| COMEL022CP | 22MM X 90 DEGREE ELBOW CHROME COMPRESSION | 22MM | 10 | 120 |
| COMEL028CP | 28MM 90 DEGREE ELBOW COMPRESSION | 28MM | 10 | 60 |
| COMEL035CP | 35MM 90 DEGREE ELBOW COMP CHROME PLATED | 35MM | 5 | 30 |
| COMEL042CP | 42MM 90 DEGREE ELBOW CHROME-PL COMPRESSION | 42MM | 2 | 10 |
| COMEL054CP | 54MM 90 DEGREE ELBOW COMPRESSION | 5MM | 1 | 10 |

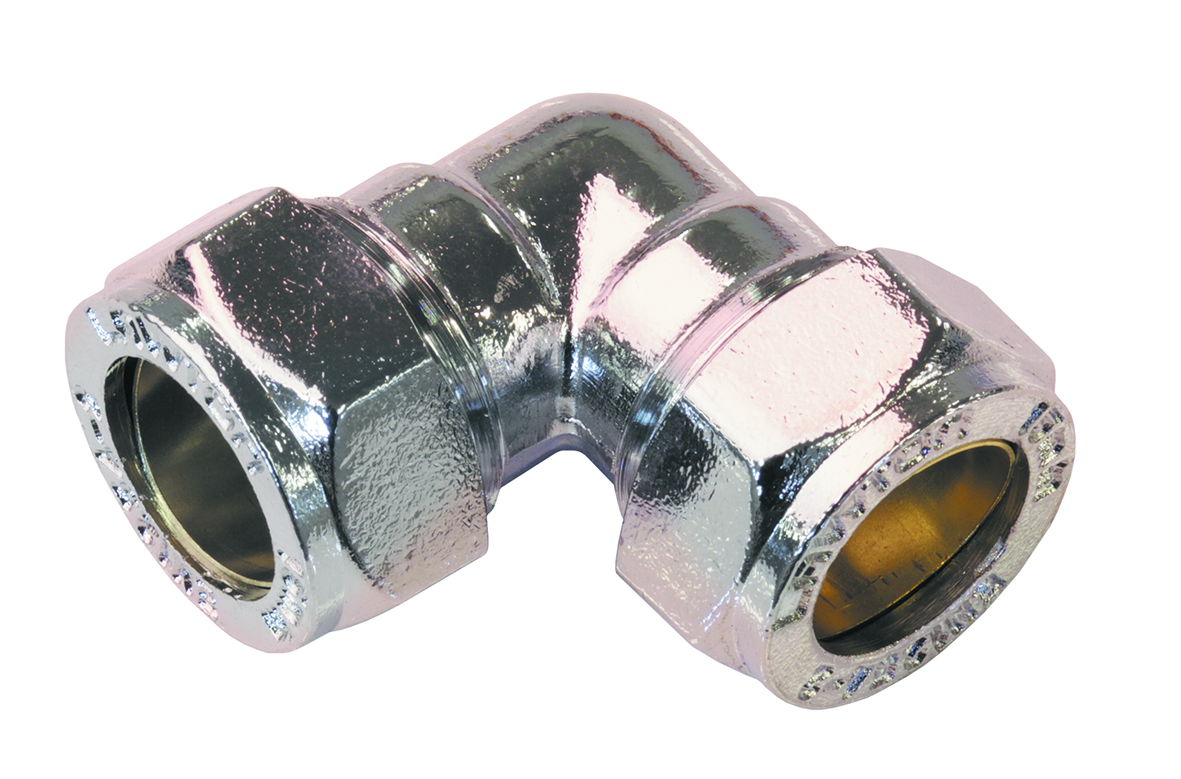

Compression Chrome Elbow
The Lawton Compression Chrome Elbow is designed to provide a secure 90-degree change in direction while delivering a polished chrome finish for exposed copper pipework installations. Manufactured to EN 1254-2 standards, it combines reliable performance with an attractive appearance for visible plumbing systems.
The compression design enables quick and straightforward installation without the need for soldering or specialist tools. The compression nut and olive assembly creates a dependable mechanical seal while maintaining a clean, professional finish.
Suitable for BS EN 1057 copper tube from 15mm to 54mm, the Lawton Compression Chrome Elbow is ideal for domestic and commercial plumbing applications where aesthetics matter. Backed by Lawton’s 75-Year Warranty, it offers long-term reliability.
Key Features
- Provides a 90-degree change in pipe direction
- Chrome finish for exposed installations
- Manufactured to EN 1254-2
- Suitable for BS EN 1057 copper tube
- Compatible with pipe sizes from 8mm to 54mm
- Quick and straightforward installation
- No soldering or specialist press tools required
- Secure mechanical compression joint
- Suitable for visible plumbing applications
- Backed by a 75-Year Warranty
Technical Data
Product Overview
Lawton Compression Fittings provide a simple, reliable and reusable jointing solution for potable water, heating and cooling systems. Available in sizes from 6mm to 54mm, the range includes both standard brass and dezincification-resistant (DZR) brass fittings, manufactured in accordance with EN 1254-2.
Applications
- Potable Water Systems
- Heating Systems
- Cooling Systems
Market Sectors
- Domestic
- Commercial
Product Specifications
|
Property |
Specification |
|
Size Range |
6mm – 54mm |
|
Standard Range Material |
CW614N Brass |
|
DZR Range Material |
CW602N Brass |
|
Jointing Method |
Compression |
|
Manufacturing Standard |
EN 1254-2 |
|
Product Marking |
Permanent Marking, Lawton Logo, Size |
|
Electrical Continuity |
Yes |
|
Form of Supply |
Bags and Boxes |
|
Inner Surface Quality |
Clean and Smooth |
|
Thread Specification (Male) |
ISO 7 / EN 10226-1 |
|
Thread Specification (Female) |
BS EN ISO 228 |
|
Warranty |
75 Years* |
Subject to standard Terms & Conditions. Please refer to our website for full details.
Standards & Compliance
|
Category |
Standard |
|
Compression Fittings |
EN 1254-2 |
|
Male Threads |
ISO 7 / EN 10226-1 |
|
Female Threads |
BS EN ISO 228 |
Maximum Operating Pressure
|
Nominal Size |
30°C |
65°C |
95°C |
|
6mm to 15mm |
25 bar |
25 bar |
16 bar |
|
Over 15mm to 28mm |
16 bar |
13 bar |
10 bar |
|
Over 28mm to 54mm |
16 bar |
10 bar |
7 bar |
Torque Settings
|
Nominal Size |
Torque (Nm) |
|
6mm – 12mm |
25 |
|
15mm |
40 |
|
22mm |
60 |
|
28mm |
80 |
|
35mm |
100 |
|
42mm |
180 |
|
54mm |
240 |
Tightening
After hand-tightening the nut, the following additional turns are recommended to achieve a watertight joint:
|
Nominal Size |
Turns |
|
6mm – 28mm |
1 Turn |
|
35mm – 54mm |
3/4 Turn |
Material Composition
|
Material |
Cu (%) |
Zn (%) |
P (%) |
Pb (%) |
As (%) |
Sn (%) |
Fe (%) |
Ni (%) |
Al (%) |
Mn (%) |
Other (%) |
Total Impurities (%) |
|
CW024A |
≥ 99.90 |
— |
0.015 – 0.040 |
— |
— |
— |
— |
— |
— |
— |
— |
≤ 0.060* |
|
CW614N |
57.0 – 59.0 |
Bal. |
— |
2.5 – 3.5 |
— |
≤ 0.3 |
≤ 0.3 |
≤ 0.3 |
≤ 0.05 |
— |
≤ 0.2 |
— |
|
CW602N |
61.0 – 63.0 |
Bal. |
— |
1.7 – 2.8 |
0.02 – 0.15 |
≤ 0.1 |
≤ 0.1 |
≤ 0.3 |
≤ 0.05 |
≤ 0.1 |
≤ 0.2 |
— |
* Excluding phosphorus and silver.
Physical Properties
|
Material |
Melting Point / Range (°C) |
Density (g/cm³) |
Thermal Conductivity (W/m·°C) |
Thermal Expansion 20-300°C (×10⁻⁶/°C) |
Electrical Conductivity (% IACS) |
Modulus of Elasticity (GPa) |
|
CW024A |
1083 |
8.96 |
305 |
16.5 |
65 |
117 |
|
CW614N |
875 – 890 |
8.50 |
120 |
21.0 |
28 |
110 |
|
CW602N |
900 – 920 |
8.43 |
117 |
20.7 |
26 |
— |
Installation & Performance
|
Property |
Specification |
|
Jointing Method |
Compression |
|
Reusable Connection |
Yes |
|
Electrical Continuity |
Yes |
|
Internal Surface Quality |
Clean and Smooth |
|
Product Identification |
Permanent Marking |
